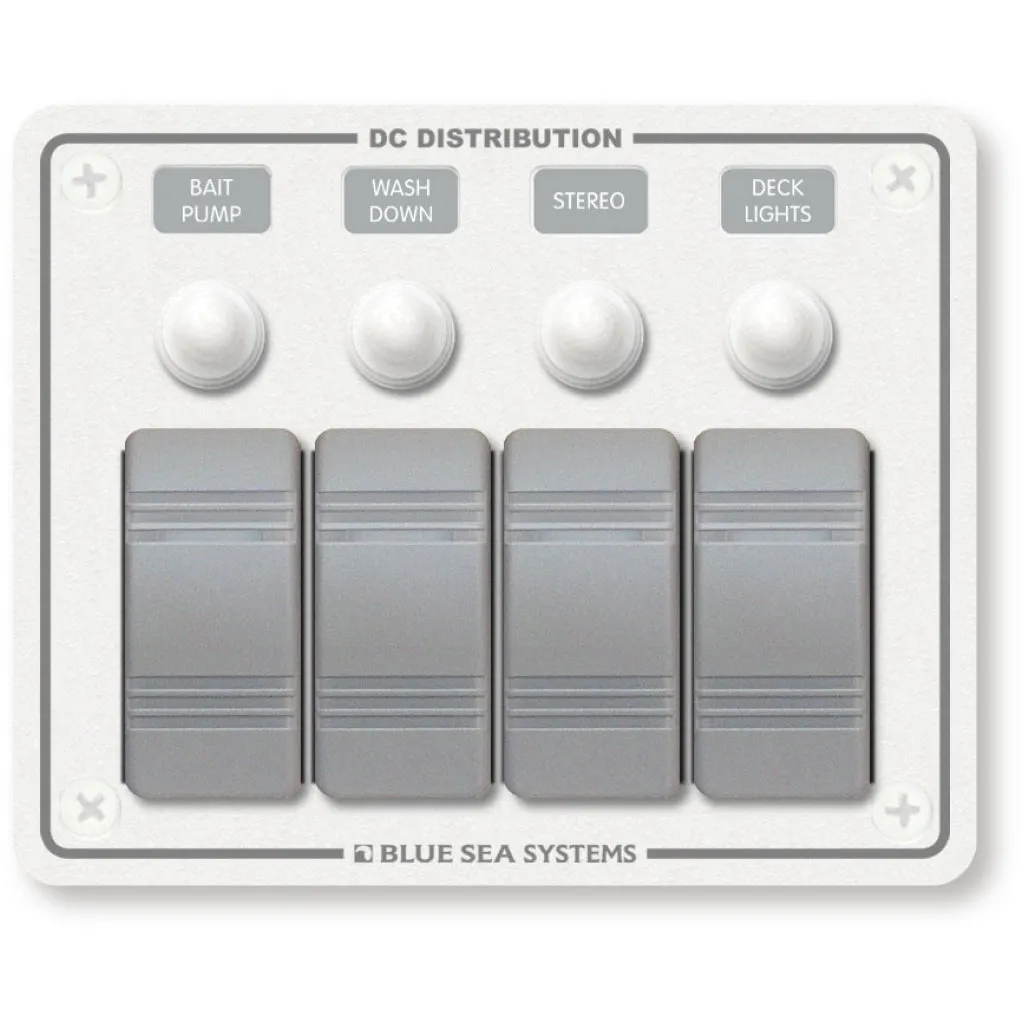

Item# 8272
Features:
- Designed for flybridge and open cockpit applications
- Panel front is rated IP66—Protected against powerful water jets
- Ignition protected—safe for installation aboard gasoline powered boats
- ON-OFF Contura Switches
- ON indicating LEDs embedded in switch
- Watertight mounting gasket
- Push Button Reset-Only circuit breakers with waterproof boots
Specifications:
- Weatherproof:Water Resistant
- Positions:4
- Nominal Voltage:12V DC
- 24V DC
- Panel Cumulative Rating:45A
- Switch Rating:20A 12V DC
- 15A 24V DC
- Height:4.25in (107.95 mm)
- Width:5.25in (133.35 mm)
- Depth:3.25in (82.55 mm)
- Weight:0.95lb (0.43 kg)
